Driver for CompactLift G2

The CompactLift Shark Control Module is designed for the controlling the Weland Vertical Lift “CompactLift”. It requires the Weland software CompactTalk to be installed on the server (where Shark Control is running) to work.

The following options are supported:

Configuration

CompactLift IP Address

The CompactLift must be configured with a fixed IP address.

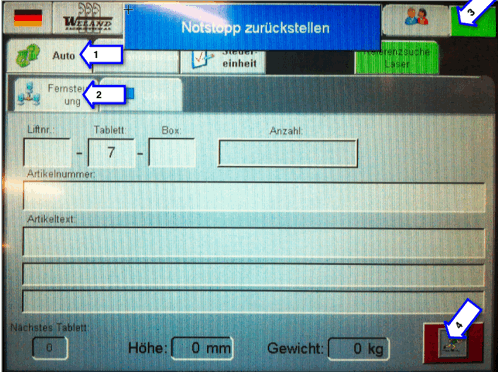

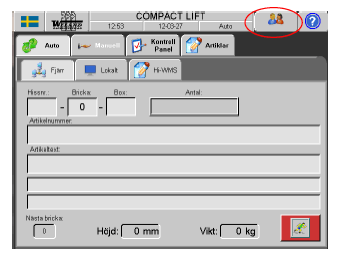

Login as service user (2472) :

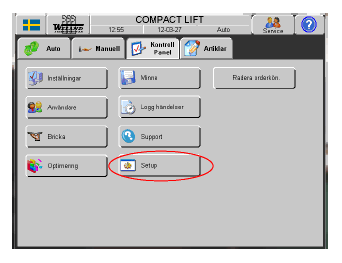

Select Setup

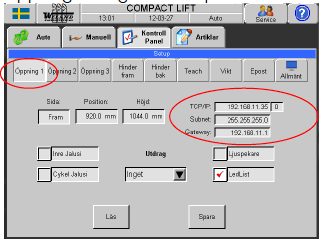

Change the IP address:

Save and accept to overwrite the flash memory.



CompactTalk

Use the document Configuration Manual Compact Talk V2.pdf to configure CompactTalk.

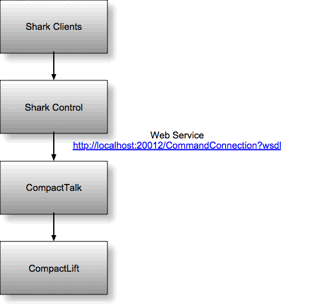

If CompactTalk is installed successfully, it will be possible to access the web service interface using the URL:

Using the CompactLift

Configuration

The configuration of the module is done in the Shark Registry under:

devices.verticallifts.<module name>

Registry Parameter Values Description
Type CompactLift
Connection http://localhost:20012 Name of the server where CompactTalk is installed. Only “localhost” is working.
Unit <name of lift in CompactTalk> This is the name of the lift in CompactTalk, eg. “H1”.
Partition <partion in CompactTalk> A way of making “zones” in CompactTalk. At least one partion will exist.
Turbo True false True if Twin option is available.
HasLaserPointer True false True if a light pointer/bar option is available.
