Driver for CompactLift G1
The CompactLift Shark Control Module is designed for the controlling the Weland Vertical Lift “CompactLift” generation 1 (G1).
Setting up the Lift for Remote Control
To allow Logisoft to have remote control of the lift:

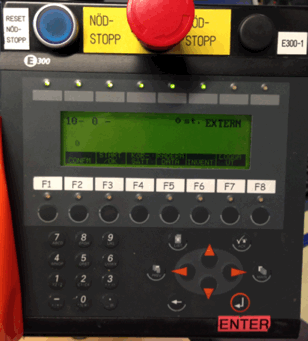

- It must be in EXTERN mode.
Press F5->F4
To return to local control: press F4 -> Main
Configuration
CompactLift IP Address
Configuration
The configuration of the module is done in the Shark Registry under:
devices.verticallifts.<module name>
| Registry Parameter | Values | Description |
|---|---|---|
| Type | CompactLiftMitsubishi | |
| Connection | <port> | COM port or address of Moxa box. |
| Unit | <PLC address> | The PLC address of the lift. |
