Driver for the LeanLift and Rotomat
The LeanLift Shark Control Module is designed for the controlling the Hänel Vertical Lift “LeanLift” with the controller MP 12N.
The following options are supported:
- Multiple openings.
- LeanLift
- Rotomat
Requirements
The LeanLift must be equipped with the HOST-COM software and the MP 12N controller.
Configuration
LeanLift IP Address
The LeanLift must be configured with a fixed IP address.
To Setup the IP address:
- Press the “key” button on the LeanLift control panel.
- Choose Menu 1 -> 2 -> enter password: 74177
- Press <enter> until “Ethernet company net”. is displayed.
- Make the changes.
- Exit and say yes to keep changes.
The LeanLift must also be connected to the network. The patch cable is normally connected in the lower right corner of the machine.
LeanLift Configuration
As default the LeanLift will not allow Logisoft to fetch trays without a user confirmation on the LeanLift control panel. This can be changed by a LeanLift configuration depending on the security features installed with the LeanLift.
Confirm using the key on the LeanLift control panel
Using the tray layout display
Shark Control

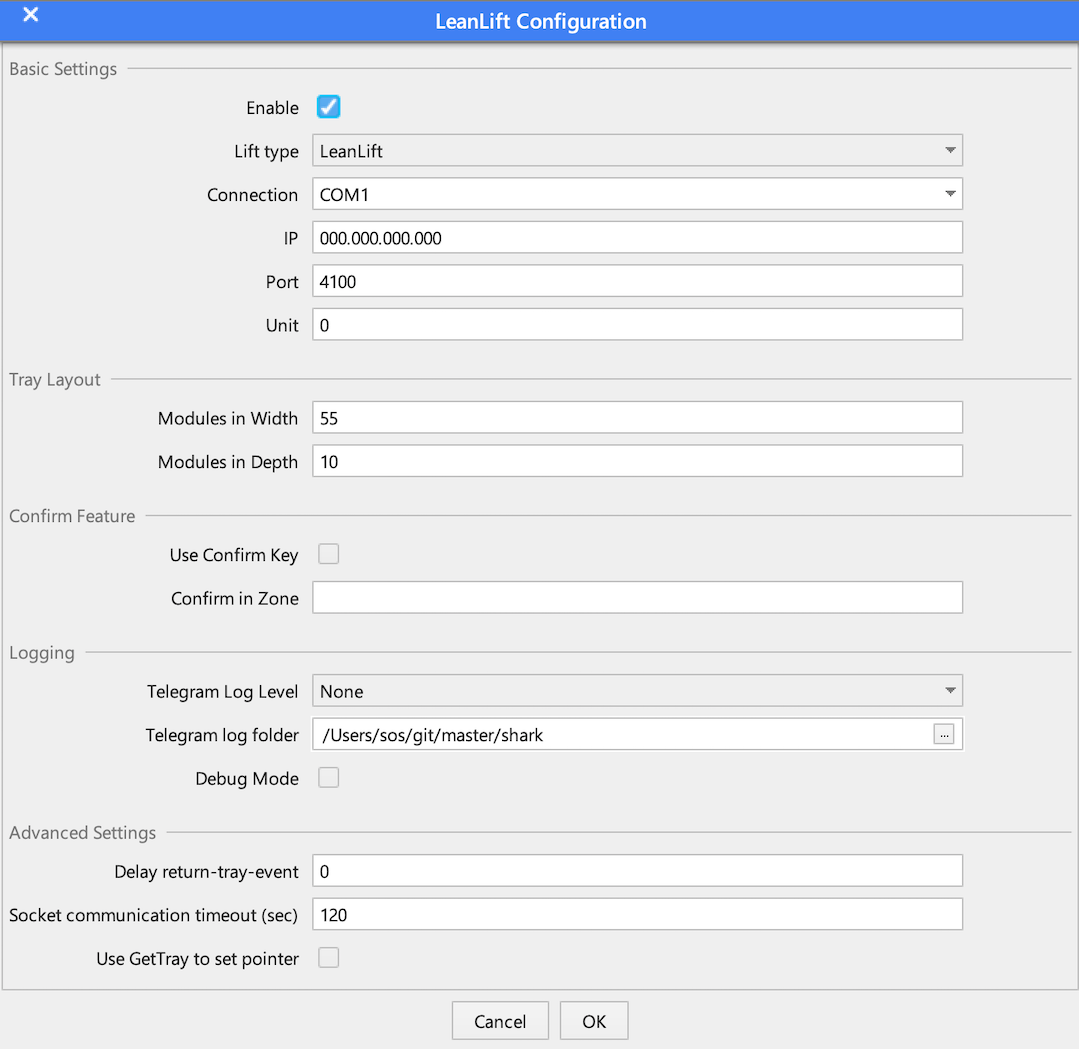

The configuration of the module is done using the configuration menu:
