Driver for the LeanLift and Rotomat
The LeanLift Shark Control Module is designed for the controlling the Hänel Vertical Lift “LeanLift” with the controller MP 12N.
The following options are supported:
- Multiple openings.
- LeanLift
- Rotomat
Requirements
The LeanLift must be equipped with the HOST-COM software and the MP 12N controller.
To allow remote control of the lift, a safety option is required:
MP supplementary module 00 - Remote-controlled lift operation. The lift can be remote-controlled from an external computer. If the access point is not in the field of view of the control device (computer at external location), special safety equipment is necessary.
Configuration
LeanLift IP Address
The LeanLift must be configured with a fixed IP address.
To Setup the IP address:
- Press the “key” button on the LeanLift control panel.
- Choose Menu 1 -> 2 -> enter password: 74177
- Press <enter> until “Ethernet company net”. is displayed.
- Make the changes.
- Exit and say yes to keep changes.
The LeanLift must also be connected to the network. The patch cable is normally connected in the lower right corner of the machine.
LeanLift Configuration
As default the LeanLift will not allow Logisoft to fetch trays without a user confirmation on the LeanLift control panel. This can be changed by a LeanLift configuration depending on the security features installed with the LeanLift. The configuration is called “Remote Control” and requires 2 serial number codes to be enteres, found on the LeanLift.
Confirm using the key on the LeanLift control panel
Using the tray layout display
Shark Control

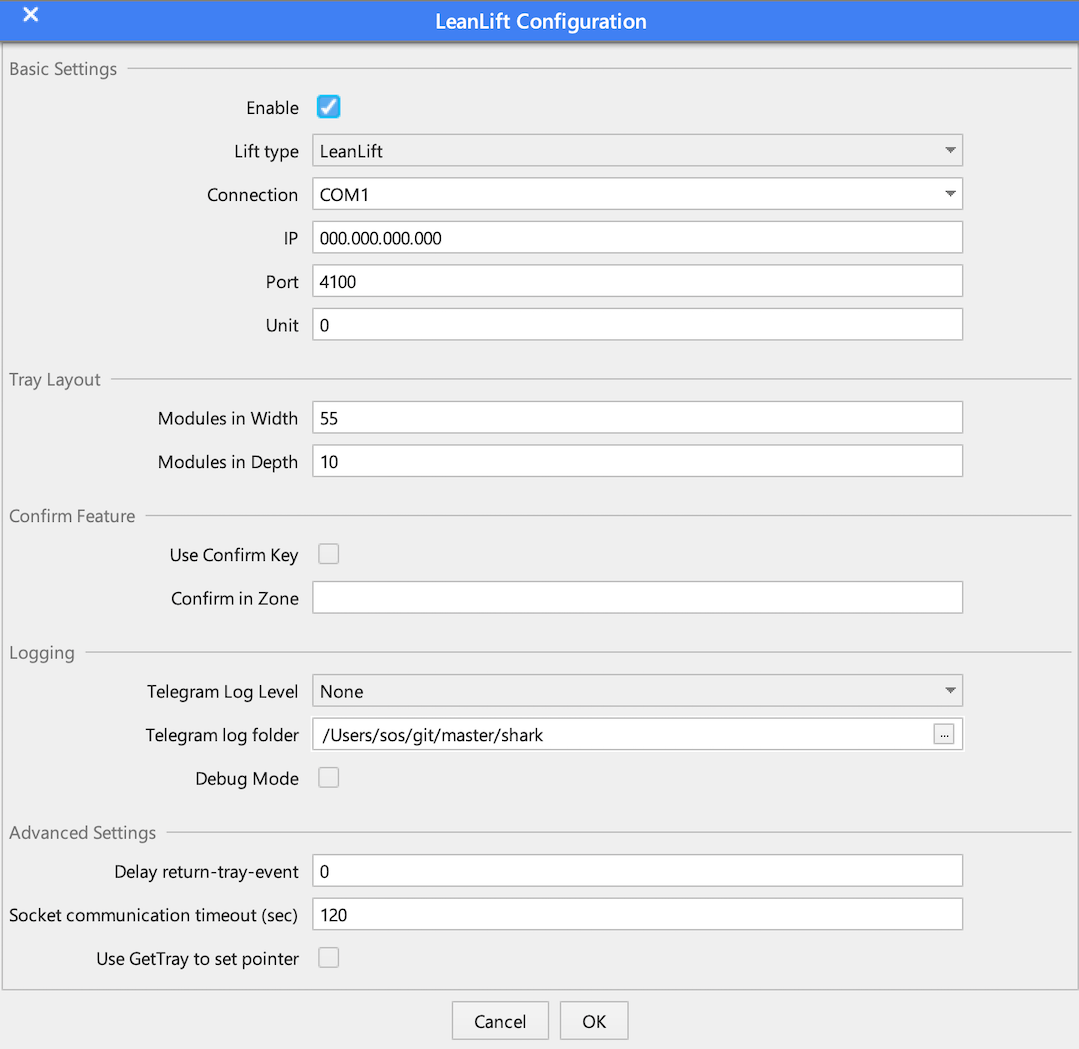

The configuration of the module is done using the configuration menu:
