ClassicMat Driver
Module for controlling the ClassicMat from Effimat Technologies.
Supported features:
- Laser pointer.
- Tilt of trays.

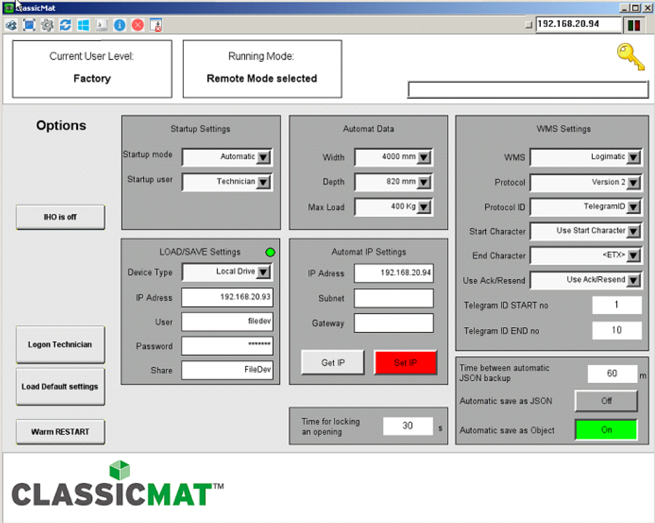

Configuration
The module make use of the version 3 communication protoll.
| Parameter | Value | Description | ||
|---|---|---|---|---|
| Type | ClassicMat2 | |||
| Connection | <ip>:<port> | This is the connection to the PLC. The default port number is 3000. A possible connection could be: 192.168.1.100:3000 | ||
| Instance | <host name> | This is the name of the PC/Server where this module is supposed to run. | ||
| LogFolder | <path to a folder> | Optional folder to keep communication log files. If empty logging will be disabled. | ||
| EnableLocationLight | true|false | If true commands will be send to control the optional laser pointer. | ||
| Tilt |
|
If true tilting will be activated, if the tray is configured for tilting in Logisoft. | ||
Pointer1.TrayWidth |
<tray width in meter> | This is required for calculation of the laser pointer position. Default is 3.0 (3000mm) | ||
| Pointer1.TrayDepth | <tray depth in meter> | This is required for calculation of the laser pointer position. Default is 0.82 (820mm) | ||
| TrayPostFix | String | The ClassicMat allow trays to be named as Strings, this is not supported by Logisoft. The TrayPostFix defines a string the tray numbers af post fixed with. So if the tray is named 3F in the ClassicMat and 3 in Logisoft, TrayPostFix must be set to "F". |
