Host Link Scripting Interface

Importing Order using the Script Importer
Order Acknowledge by Scripting
- Using the SLogger
Report Order State Changing by Groovy Scripting

It is possible to interface to Logisoft using Groovy Scripting. This allows Logisoft to interface to most systems without customizing the program it self, but it requires some knowledge in programming.

Importing Order using the Script Importer

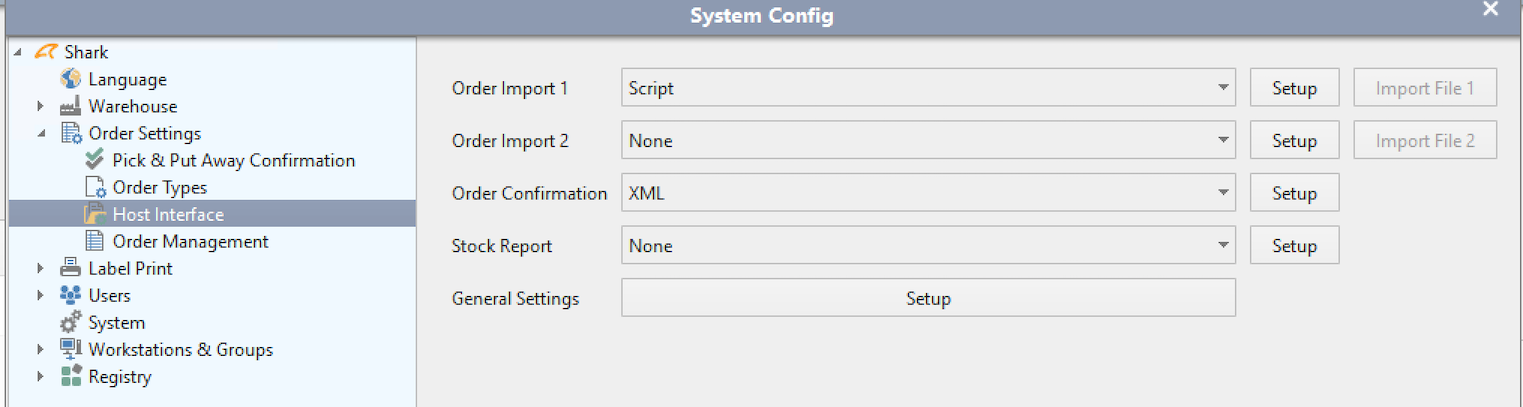

Activate the scripting interface from System Configuration menu.

Order Acknowledge by Scripting

To get full control of how the format of the generated acknowledge response is, a Groovy script can be used for the formatting. Since Groovy is a general script language, it can be used for file generation, web services, database access etc.

The internally Logisoft always generates an XML data structure for acknowledgement/confirmation when a order has been fulfilled. The scripting interface allows a Groovy script to interpret the XML and do whatever is required.

The configuration can be done by using the standard menu for configuration

Information flow in Logisoft:

Typical interfaces where scripting fits well:

Generation of other file formats than XML (an alternative here is also to use XSLT to make the conversion).
Interface to REST Web Services.
Interface to SOAP Web Services.
Integration to databases.

Example on configuration of the script exporter

When the script is called, the following variables are defined:

Name	Java Type	Description
document	DocumentVO	This is the basic document. Use document.getXMLData() to get the XML code as a String.
slogger	SLogger	Logger class used for logging info, errors, etc. to the Logisoft system log.
development	boolean	True if the script is running from the editor in a debug environment.
tmpFolder	String	Temporary folder if the script needs a working area
receiver	String	Name of the receiver.

External classes:

dk.logiware.sharklink.models.DocumentVO
dk.logiware.sharklink.SLogger

Script Example:

import java.text.SimpleDateFormat
import java.util.Date

// Folder where files are written
def exportFolder = new File('/Users/sos/tmp')

// Parse the XML document from Logisoft Document System
def xmldoc = new XmlParser().parse(document.getXMLData())

// Format a datetime string for the filename
def dateString = new SimpleDateFormat("yyyyMMddHHmmss").format(new Date())

// Define the filename
def filename = xmldoc.OrderNumber.text() + dateString + ".csv"

// Get parameters for the file from the XML document
def ordernumber = xmldoc.OrderNumber.text()
def state = xmldoc.State.text()

// Write the file
new File(exportFolder, filename).write("$state,$ordernumber")

Calling a REST or SOAP Web Service

Libraries good for call web services:

groovy-wslite - https://github.com/jwagenleitner/groovy-wslite. Supports both REST and SOAP, but the library is only available as standard in newer Logisoft version.
Groovy HTTPBuilder . See for example JavaWorld.

Using the SLogger

The SLogger class is accessible through the instance slogger, available when the script is called. The log will go the general target for the logs, typical the database. Can be viewed in the System Log.

Examples:

slogger.logError(String message, int errorCode, Exception exception)
slogger.logError(String message, int errorCode, Exception exception)
slogger.logError(String message, int errorCode, Exception exception, String orderNumber, String detailed)

slogger.logInfo(String message)
slogger.logInfo(String message, int errorNumber)
slogger.logInfo(String message, int errorNumber)
slogger.logInfo(String message, String detailedMessage, String order, int errorNumber)

slogger.logDebug(String message)
slogger.logDebug(String message, String detailedMessage, String order, int errorNumber)

slogger.logWarning(String message, int errorCode)

The errorCode is an integer and there is a number of predefined error codes in the ErrorCode object. If you create your own codes, it is recommended to make them in the range 4000-4999.

Report Order State Changing by Groovy Scripting

This is only partly supported and required manually configuration.

Information flow in Logisoft:

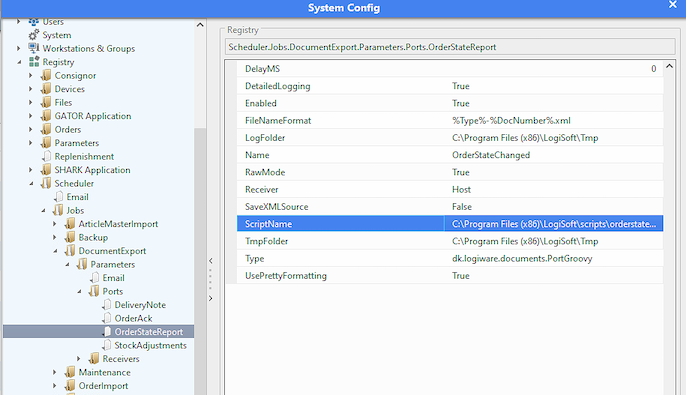

The configuration must be done in the Logisoft Registry, there is no simple dialog for the configuration.

Define a port using the type: dk.logiware.documents.PortGroovy

Define a port name that matches the document to grab (Probably OrderStateChanged)

The script is defined either as file or as a script name, using the parameter: ScriptName

Example on configuration of the script exporter

When the script is called, the following variables are defined:

Name	Java Type	Description
document	DocumentVO	This is the basic document. Use document.getXMLData() to get the XML code as a String.
slogger	SLogger	Logger class used for logging info, errors, etc. to the Logisoft system log.
development	boolean	True if the script is running from the editor in a debug environment.
tmpFolder	String	Temporary folder if the script needs a working area
receiver	String	Name of the receiver.

External classes:

dk.logiware.sharklink.models.DocumentVO
dk.logiware.sharklink.SLogger

Script Example:

import java.text.SimpleDateFormat
import java.util.Date

// Folder where files are written
def exportFolder = new File('/Users/sos/tmp')

// Parse the XML document from Logisoft Document System
def xmldoc = new XmlParser().parse(document.getXMLData())

// Format a datetime string for the filename
def dateString = new SimpleDateFormat("yyyyMMddHHmmss").format(new Date())

// Define the filename
def filename = xmldoc.OrderNumber.text() + dateString + ".csv"

// Get parameters for the file from the XML document
def ordernumber = xmldoc.OrderNumber.text()
def state = xmldoc.State.text()

// Write the file
new File(exportFolder, filename).write("$state,$ordernumber")
