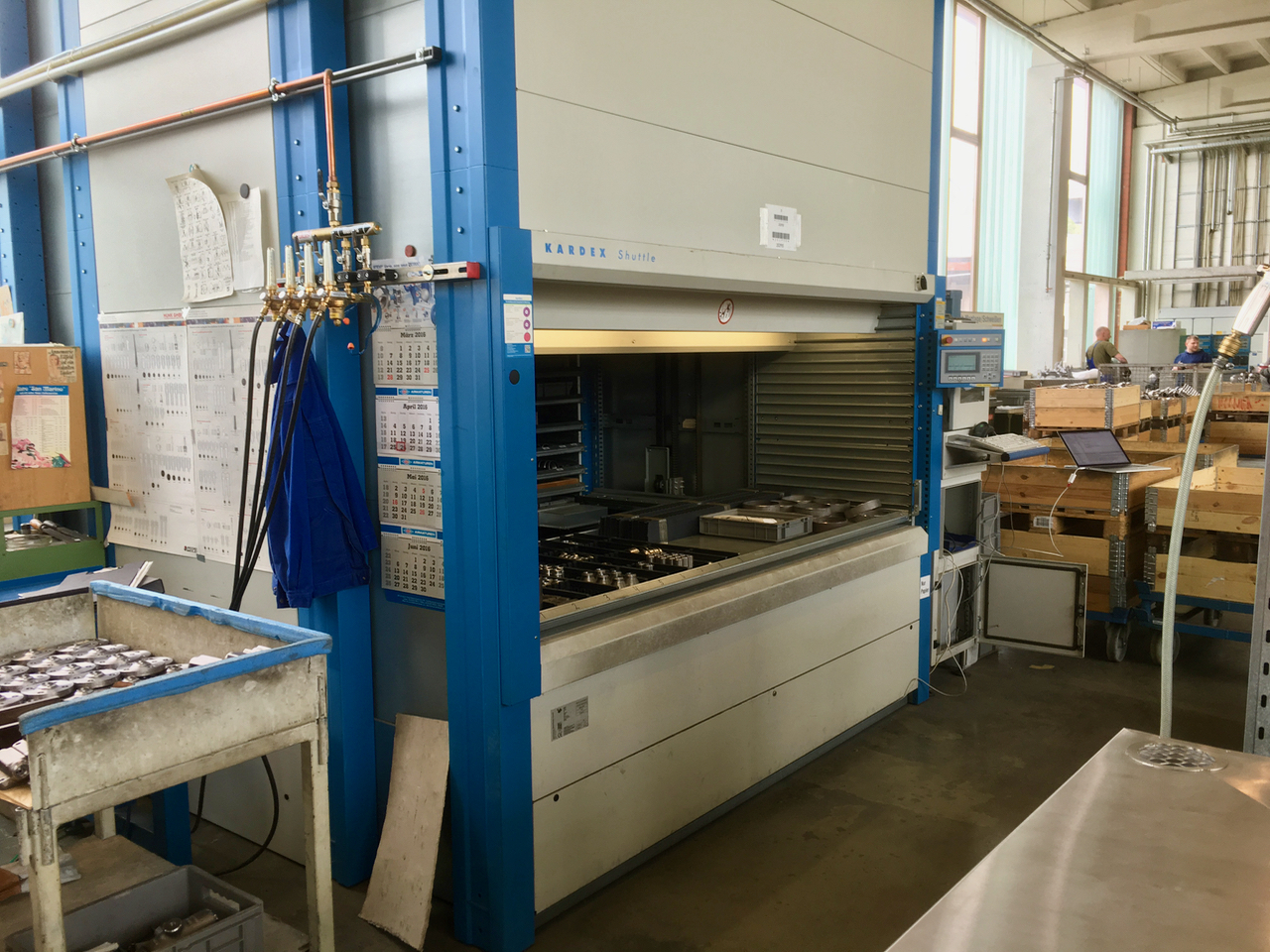

Driver for the Kardex Shuttle XP
The driver works for the controller ”C2000” with an Ethernet connection.
Configuration
| Parameter | Value | Notes | |||
|---|---|---|---|---|---|
| Connection | 198.168.100.123:2003 | This is the TCP/IP address and port number. The communication is using the UDP protocol. | |||
| Unit | 1 | 2 | 3 | .. | Unit number of the device. |
| msgStartup | Logisoft %s | Message written on the User Panel when Logisoft is started. %s is replaced by the module name in Logisoft (eg. A1) | |||
| msgGetTray | Tray %d | Message written to the user panel when a tray is fetched. The %d is replaced by the tray number. |
Operation

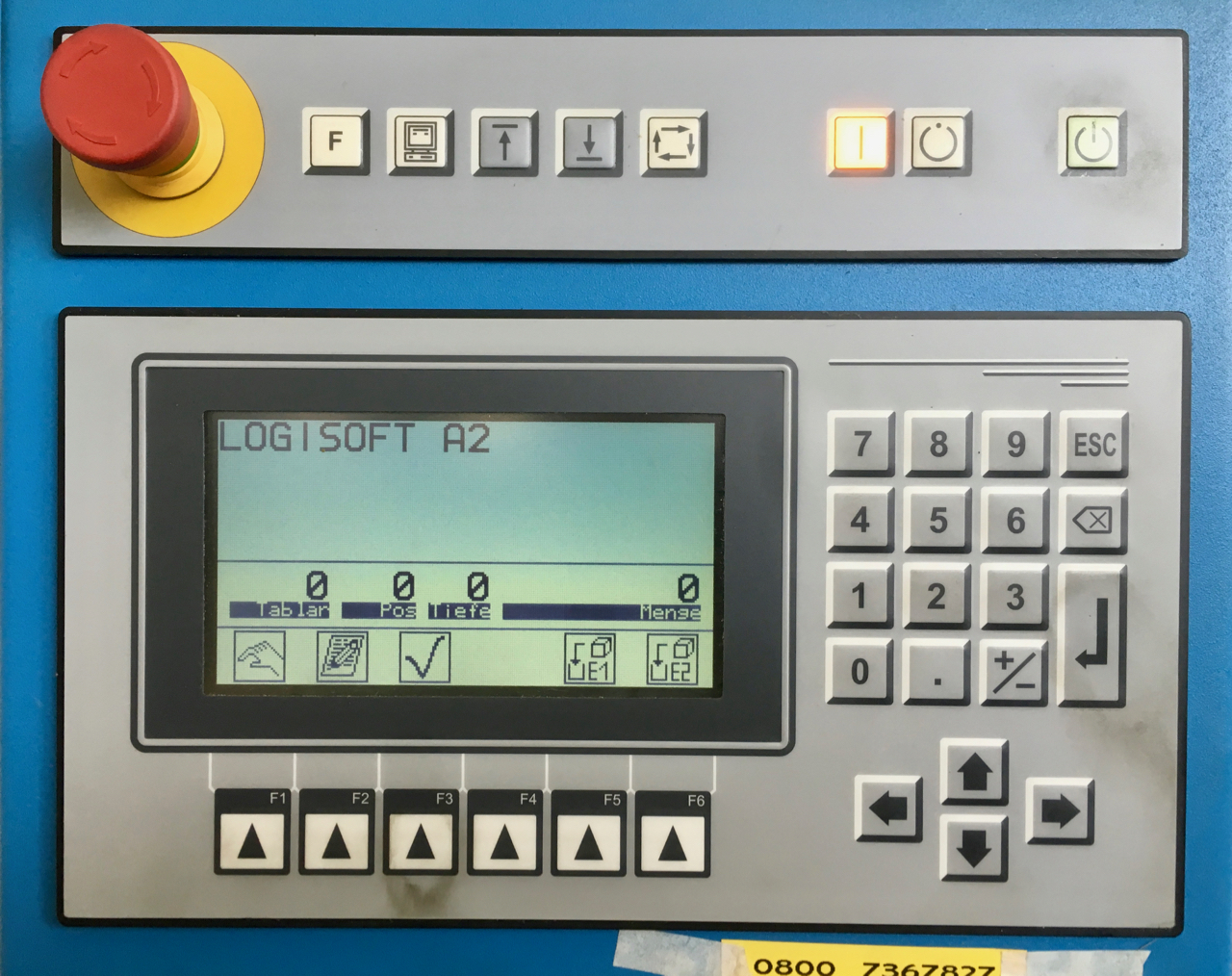

Setup of Kardex user panel to make it operable.
- Turn Kardex main switch off/on.
- Press F3 once on the Kardex panel.
- Press the green button on the Kardex panel.
Logisoft is not able to return trays from the opening without retrieving a new. The last tray can be returned by pressing the enter button.
